신경 혈관계에 중재 장치를 도입하는데 사용
This device is used to introduce an intervention device into the neurovascular system.
Guiding Catheter

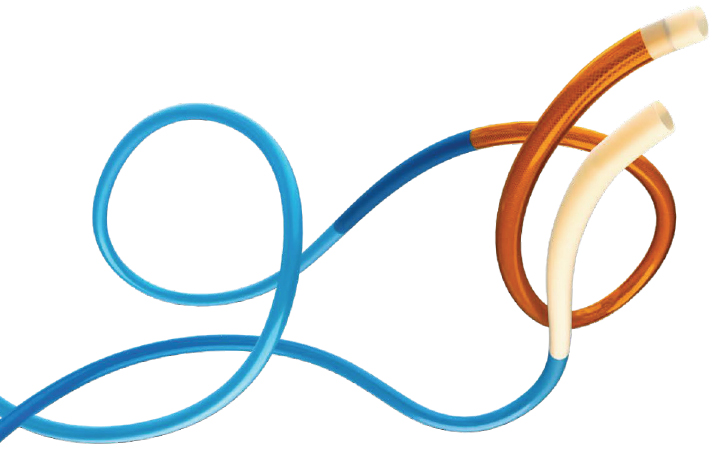

THE ENVOY FAMILY OF GUIDING CATHETERS
A LEGACY OF TRUSTED PERFORMANCE
Guiding Catheter
ENVOY5F, 6F, 7F
- Soft Distal Tip
- Excellent Visibility
- Excellent Trackability

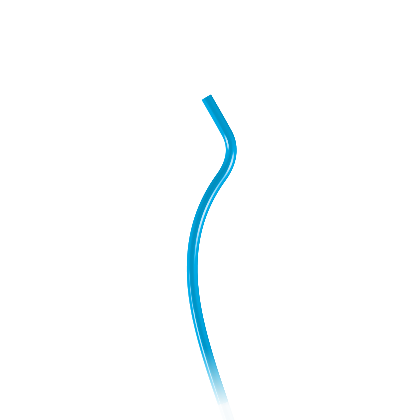

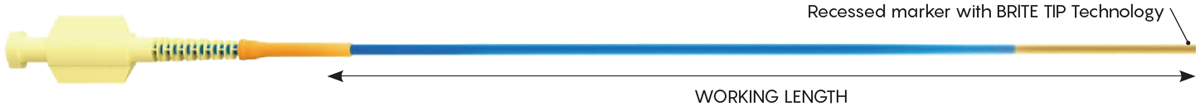

Representation of 5/6/7 French ENVOY
| Catalog NO. |
Outer Diameter (French)" |
Inner Diameter (in) |
Working Length (cm) |
Tip Shape | Shape Description |
|---|---|---|---|---|---|
| 55626090 | 5F | 0.056 | 90 |
|
STR |
| 55626000 | 100 | ||||
| 55625890 | 90 |
|
MPD | ||
| 55625800 | 100 | ||||
| 67026090 | 6F | 0.07 | 90 |
|

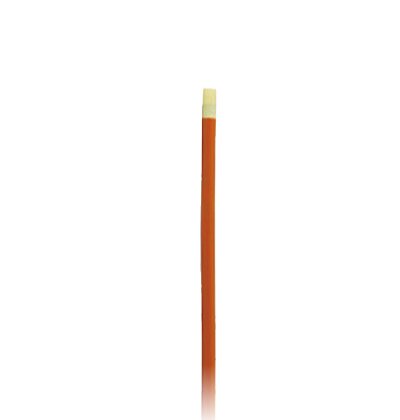

STR |
| 67026000 | 100 | ||||
| 67025890 | 90 |
|

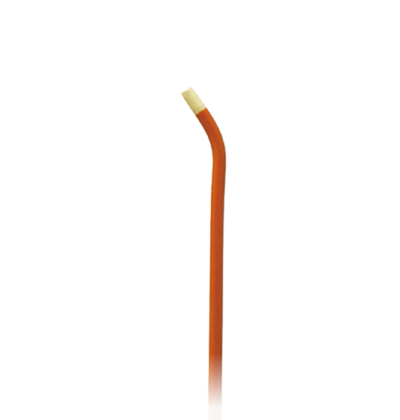

MPD | ||
| 67025800 | 100 | ||||
| 77826090 | 7F | 0.078 | 90 |
|
STR |
| 77826000 | 100 | ||||
| 77825890 | 90 |
|
MPD | ||
| 77825800 | 100 |
Guiding Catheter
ENVOY DA 6F

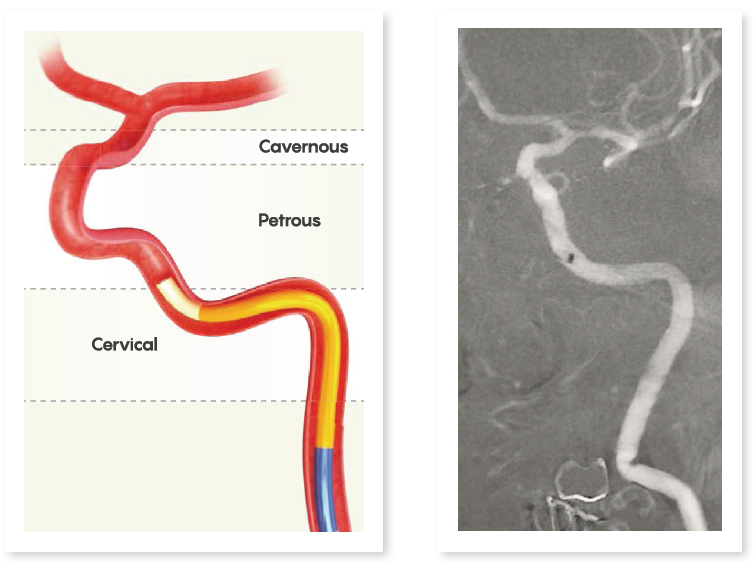

- Distal Flexibility

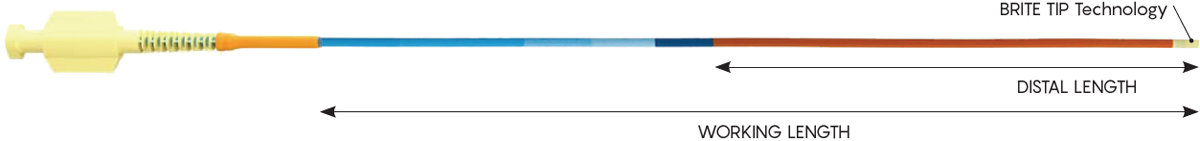

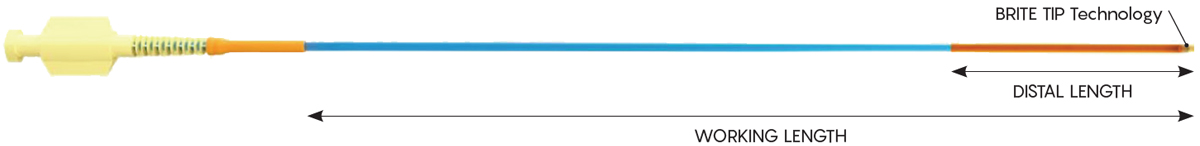

Representation of ENVOY DA Guiding Catheter
| Catalog NO. |
Outer Diameter (French)" |
Inner Diameter (in) |
Distal Length (cm) |
Working Length (cm) |
Tip Shape | Shape Description |
|---|---|---|---|---|---|---|
| 67126095D | 6F | 0.071 | 8 | 95 |
|
STR |
| 67126005D | 105 | |||||
| 67125895D | 95 |
|
MPD | |||
| 67125805D | 105 |
Guiding Catheter
ENVOY DA XB 6F
- Distal Flexibility
- Improved BACK-UP SUPPORT
Representation of ENVOY DA Guiding Catheter
DA
DA XB
| Catalog NO. |
Outer Diameter (French) |
Inner Diameter (in) |
Distal Length (cm) |
Working Length (cm) |
Tip Shape | Shape Description |
|---|---|---|---|---|---|---|
| 67126095DB | 6F | 0.071 | 8 | 95 |
|
STR |
| 67126005DB | 105 | |||||
| 67125895DB | 95 |
|
MPD | |||
| 67125805DB | 105 |
New Prower EX

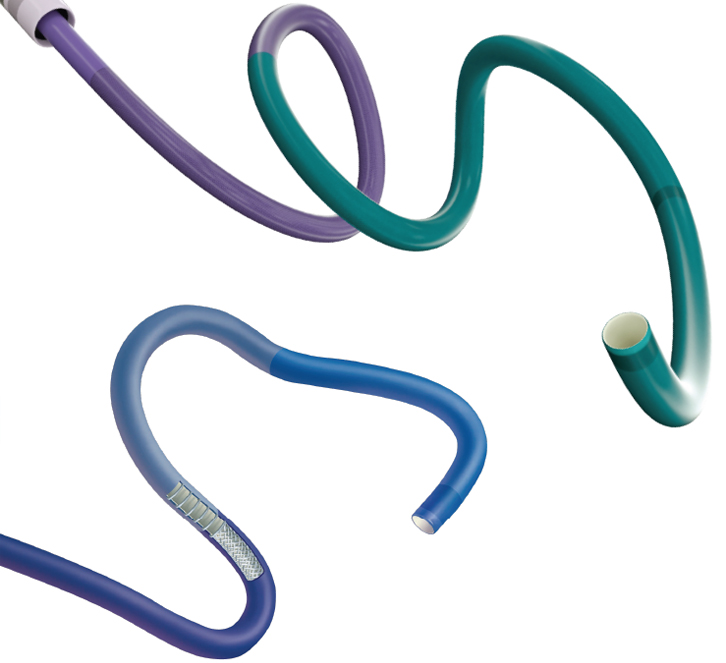

THE PROWLER FAMILY OF MICROCATHETERS
Micro Catheter

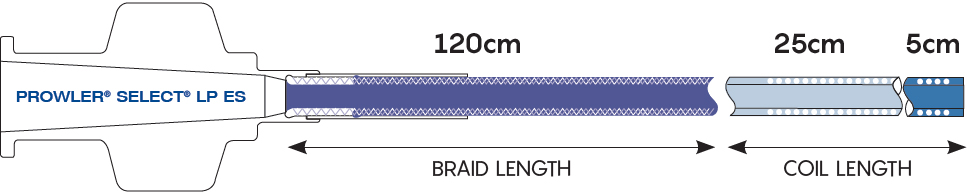

- Proprietary Braid Construction
- Provides a balance of stability (braid section) and navigability (coil section)*
- TRUELUMEN® Technology
- Provides a consistent inner diameter throughout the length of the microcatheter
- In-line marker bands provide a consistent profile and enhanced visibility under fluroscopy
- Accurate Tip Position
- Shorter distal tip extending past the distal marker (as little as 0.5mm1) provides more accurate representation of tip position under fluroscopy
- Precise Torqueability
- Exclusive core wire technology specially designed to deliver precise torque transmission, control and pushability

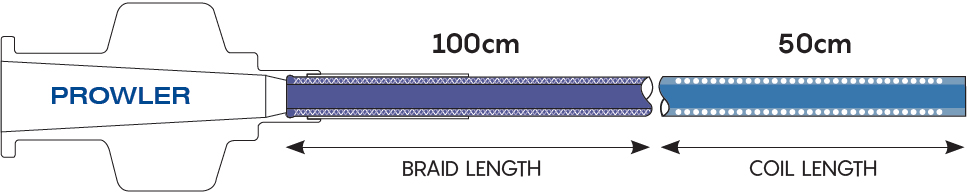

PROWLER
FLEXIBILITY
- More Flexibility
- Kink Resistance
- Lumen Integrity
PROWLER PLUS
FLEXIBILITY
- More Flexibility
- Kink Resistance
- Lumen Integrity
PROWLER PLUS
| Catalog NO. |
Outer Diameter (prox./distal) |
Inner Diameter (in) |
Usable Length (cm) |
Distal Length (cm) |
Tip Markers | Shape Description |
|---|---|---|---|---|---|---|
| 606-051X | 2.3F/1.7F | 0.0165 | 150 | 50 | 2 | Straight |
| 606-051FX | 100 | |||||
| 606-051MX | 90 | |||||
| 606-051JX | J |

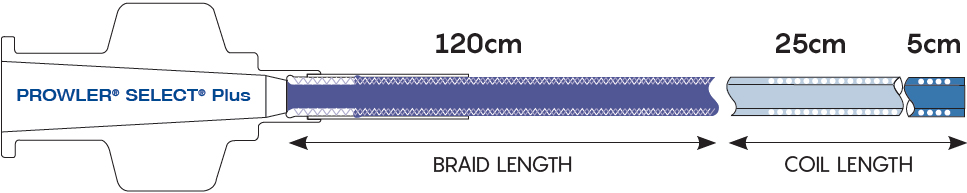

PROWLER SELECT PLUS
| Catalog NO. |
Outer Diameter (prox./distal) |
Inner Diameter (in) |
Usable Length (cm) |
Distal Length (cm) |
Tip Markers | Shape Description |
|---|---|---|---|---|---|---|
| 606-S255X | 2.8F/2.3F | 0.021 | 150 | 5 | 2 | Straight |
| 606-S255FX | 45 | |||||
| 606-S255MX | 90 | |||||
| 606-S255JX | J |
Guide Wire

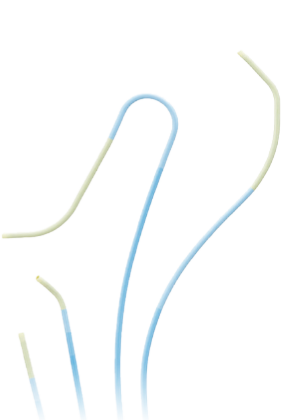

AGILITY Steerable Guidewires
Greater Control for Enhanced Access
Guide Wire
AGILITY
- Excellent Torquability
- Tip Softness

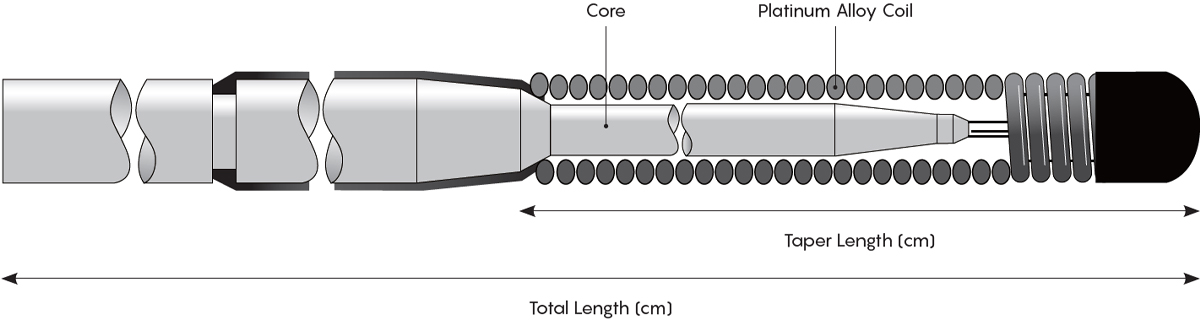

AGILITY 14
| Catalog NO. |
Outer Diameter (in) |
Usable Length (cm) |
Toper Length (cm) |
Description |
|---|---|---|---|---|
| 614-481 | 0.014 | 205 | 42 | Standard |
| 614-482 | 45 | Soft | ||
| 614-491 | 350 | 42 | Standard XL |
