뇌동맥류를 치료하는데 필요한 색전 촉진용 보철제

This device is a prosthetic for embolization needed to treat brain aneurysms.

GALAXY G3 / Orbit Galaxy

CERENOVUS SPECTRA™

FROM START TO FINISH

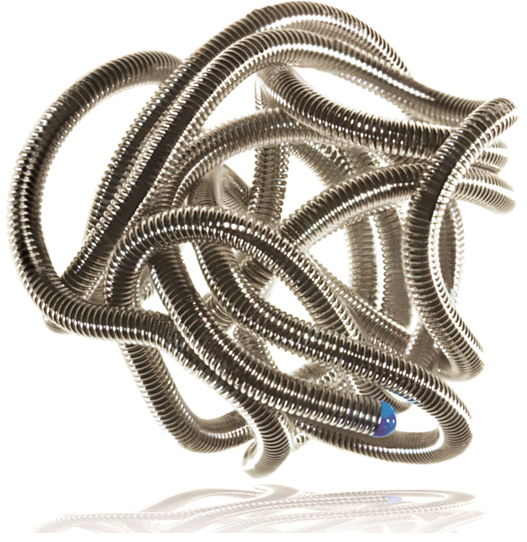

GALAXY G3™ Microcoils have a complex shape and the unique proprietary random loop design which does not follow a predefined shape.

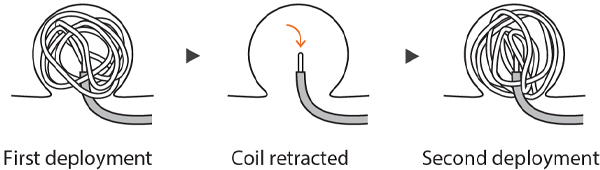

The random loops pursue a unique path each time they are deployed.

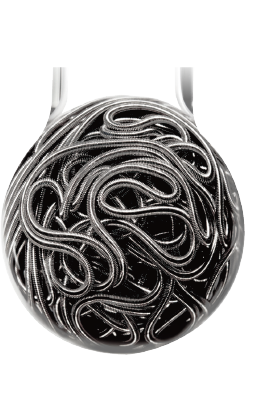

GALAXY G3™ Microcoils conform to the true aneurysm shape and seeks open space to fill concentrically, from the periphery to the core.
The GALAXY G3™ Microcoil System is compatible with microcatheters with inner lumen diameters ranging from 0.0165 to 0.021 in (0.419 to 0.533 mm).

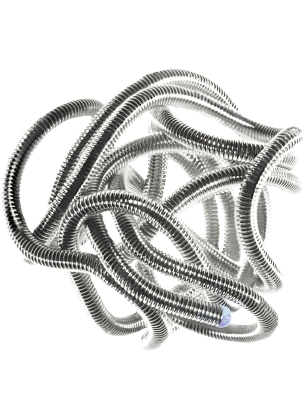

GALAXY G3

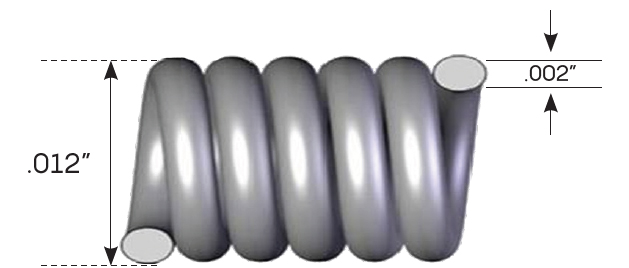

Primary Coil Diameter : 0.012”

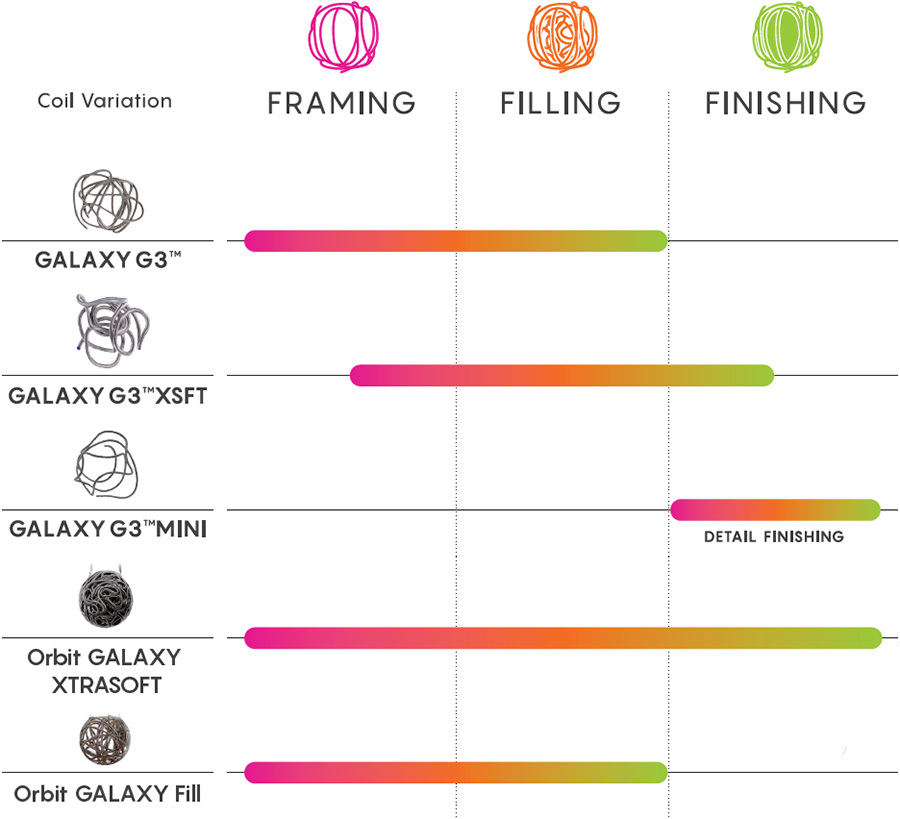

  • FRAMING
  • FILLING
  • FINISHING
  • Random Loop Design
  • Higher Embolic Density
  • High Flexibility
Random Loop Design

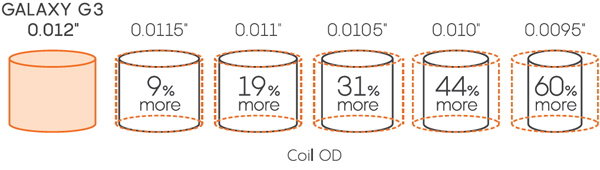

Higher Embolic Density
GALAXY G3
Catalog NO. Loop Diameter
(mm) 		Overall Length
(cm) 		Outer Diameter
(mm)
GLY120410 4 10 0.012
GLY120412 12
GLY120510 5 10
GLY120515 15
GLY120615 6 15
GLY120620 20
GLY120721 7 21
GLY120824 8 24
GLY120925 9 25
GLY121030 10 30

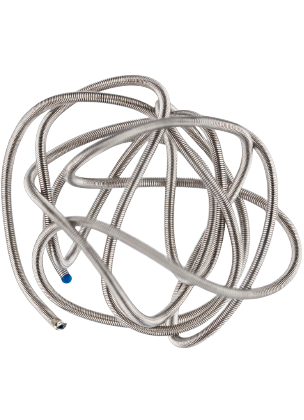

GALAXY G3 XSFT

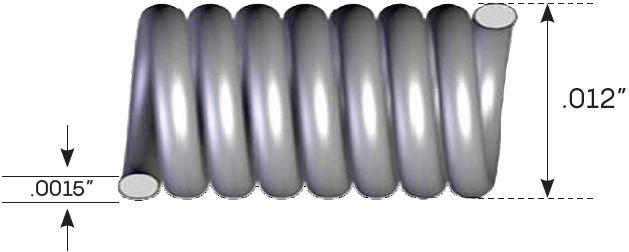

Primary Coil Diameter : 0.012”
  • FRAMING
  • FILLING
  • FINISHING
  • Random Loop Design
  • Higher Embolic Density
  • High Flexibility
Random Loop Design

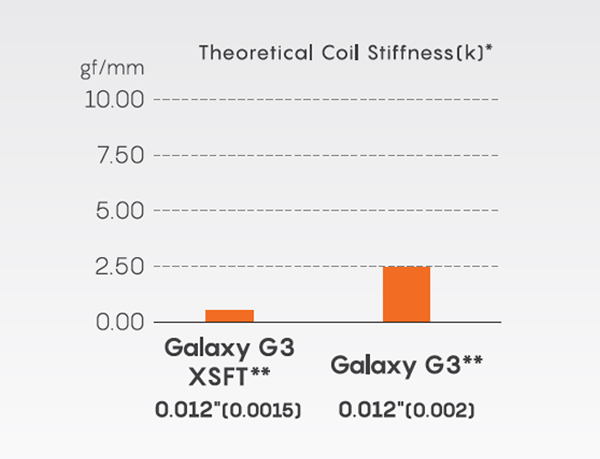

High Coil Flexibility
Higher Embolic Density
GALAXY G3 XSFT *Helical Coil
Catalog NO. Loop Diameter
(mm) 		Overall Length
(cm) 		Outer Diameter
(mm)
GLX120204* 2 4 0.012
GLX120206* 6
GLX120202 2
GLX122535 2.5 3.5
GLX120505 5
GLX120304 3 4
GLX120306 6
GLX120308 8
GLX123505 3.5 5
GLX123575 7.5
GLX123509 9
GLX120406 4 6
GLX120408 8

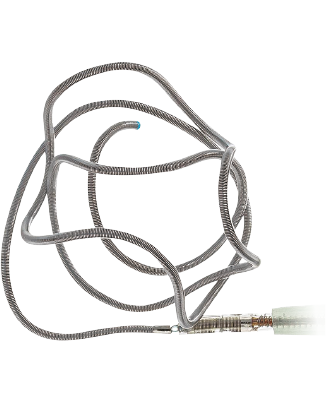

GALAXY G3 MINI

Primary Coil Diameter : 0.012”
  • FRAMING
  • FILLING
  • FINISHING
  • Low Primary Diameter
  • Random Complex Shape
  • Softest Coil

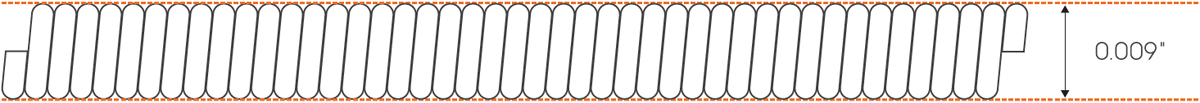

0.009” Low Primary Diameter
GALAXY G3 MINI
Catalog NO. Loop Diameter
(mm) 		Overall Length
(cm) 		Outer Diameter
(mm)
GLM910010 1 1
GLM910015 1.5
GLM910020 2
GLM910025 2.5
GLM910030 3
GLM910040 4
GLM915020 1.5 2
GLM915025 2.5
GLM915030 3
GLM915040 4
GLM920030 3 3
GLM920040 4
GLM920060 6
GLM925035 2.5 3.5
GLM925045 4.5
GLM925055 5.5
GLM930040 3 4
GLM930060 6

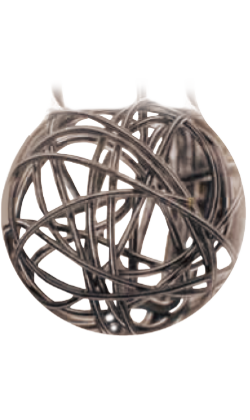

Orbit GALAXY XTRASOFT Coils

Primary Coil Diameter : 0.012”
  • FRAMING
  • FILLING
  • FINISHING
  • Random Complex Design
  • Higher Embolic Density
  • Soft Hydro System
XTRASOFT Coils HX = Helical
Catalog NO. Loop Diameter
(mm) 		Overall Length
(cm) 		Outer Diameter
(mm)
HX 640HX0204 2 4 0.012
640HX0206 6
CX 640CX0202 2
640CX2535 2.5 3.5
640CX2505 5
640CX0304 3 4
640CX0306 6
640CX0308 8
640CX3505 3 5
640CX3575 7.5
640CX3509 9
640CX0406 4 6
640CX0408 8

Orbit GALAXY Fill Coils

Primary Coil Diameter : 0.012”
  • FRAMING
  • FILLING
  • FINISHING
  • Random Complex Design
  • Higher Embolic Density
  • Soft Hydro System
Fill Coils
Catalog NO. Loop Diameter
(mm) 		Overall Length
(cm) 		Outer Diameter
(mm)
640CF0410 4 10 0.012
640CF0412 12
640CF0510 5 10
640CF0515 15
640CF0615 6 15
640CF0620 20
640CF0721 7 21
640CF0824 8 24
640CF0925 9 25
640CF1030 10 30

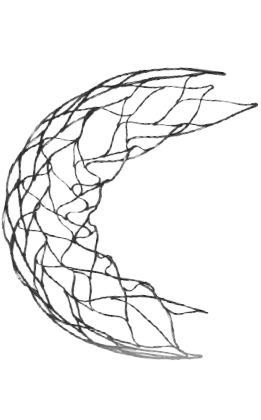

CERENOVUS ENTERPRISE® II

vascular reconstruction device

NAVIGATE WITH PRECISION,
CONFIDENCE and CONFORMABILITY

ENTERPRISE II

  • Improve Conformability
  • HImprove Wall Apposition
  • Improve Visibility

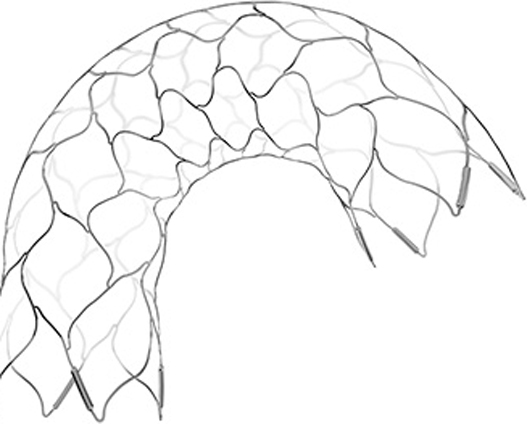

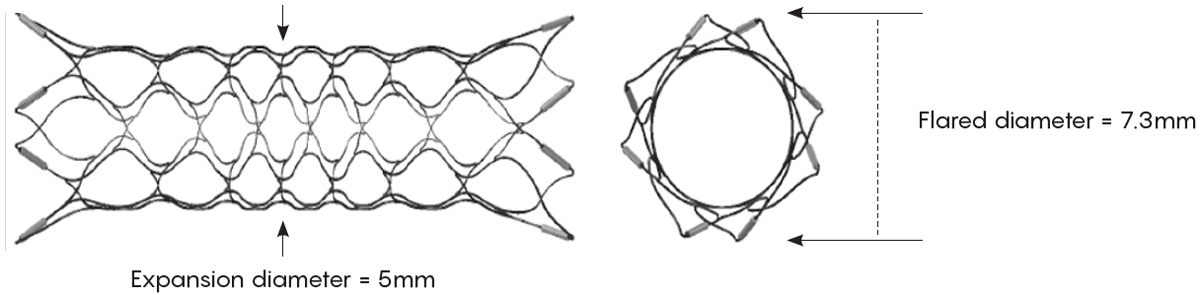

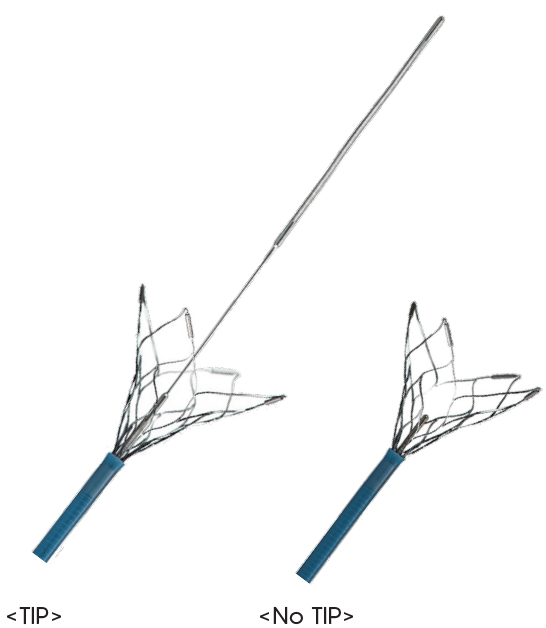

ENTERPRISE II Device is shown
ENTERPRISE II
Distal Tip
Catalog No. 		No Distal Tip
Catalog No. 		Min. Indicated Parent Vessel Diameter
(mm) 		Max. Indicated Parent Vessel Diameter
(mm) 		Length at Max Indicated Parent Vessel Diameter
ENF401612 ENF401600 2.5 4 16
ENF402312 ENF402300 23
ENF403012 ENF403000 30
ENF403912 ENF403900 39
